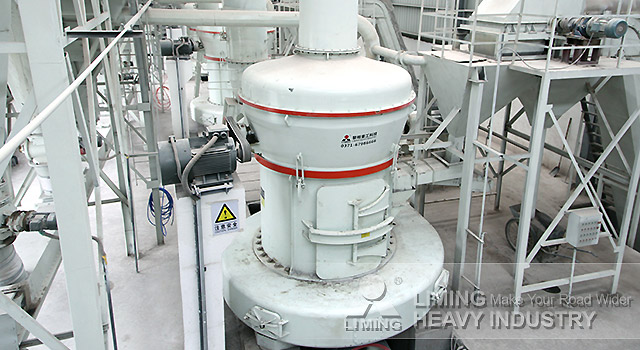

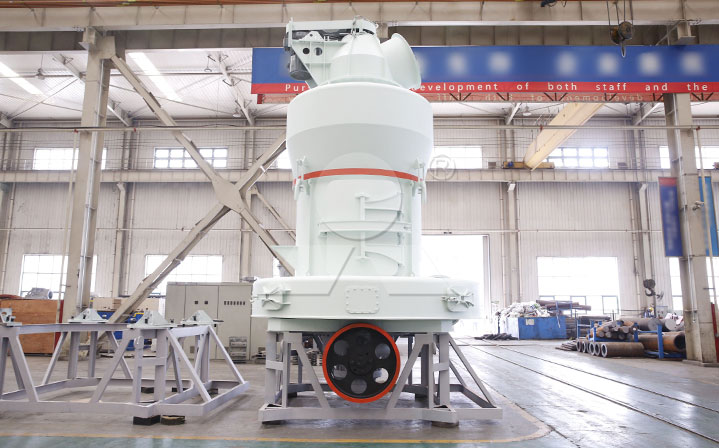

MTW European Type Trapezium Mill

Online

MTW European Type Trapezium Mill

Input size

30-50mm

Production capacity

3-50TPH

Applications

limestone desulfurization in power plant, metallurgy, non-metallic mineral powder making, heavy calcium carbonate processing, building materials and chemical industry

WhatsApp: 8619538445250

As we know, Traditional Raymond mill, Pendulum Mill are welcomed in the world. But, MTW European Trapezium Mill is the upgrade products, which has patented technology, stable performance, high productivity, environmental protection and energy saving, committed to large-scale non-metallic mineral powder making.

Model	Main engine power (kW)	Power of powder concentrator (kW)	Power of powder concentrator (kW)	Main Engine rotational speed (r/min)	Maximum feed size (mm)	Fineness of finished product (mm)	Processing capacity (t/h)	Overall dimension (mm) （L×W×H）
MTW115G	55-75	55-75	7.5-11	110-125	30	1.6-0.045, fineness can reach to 0.038	3-12	8425×7933×8642
MTW145G	110-132	110-132	18.5-30	86-110	35	6-23	8971×9630×11185
MRN158	132-160	132-160	22-30	80-95	38	8-30	10200×9100×10100
MTW178G	185-200	185-200	30-37	65-90	40	10-38	10268×9595×10351
MTW198G	220-250	220-250	37-55	60-75	40	15-46	12150×12500×11000
MTW218G	280-315	280-315	55-75	55-70	50	18-55	14960×12440×11560

Working Principle

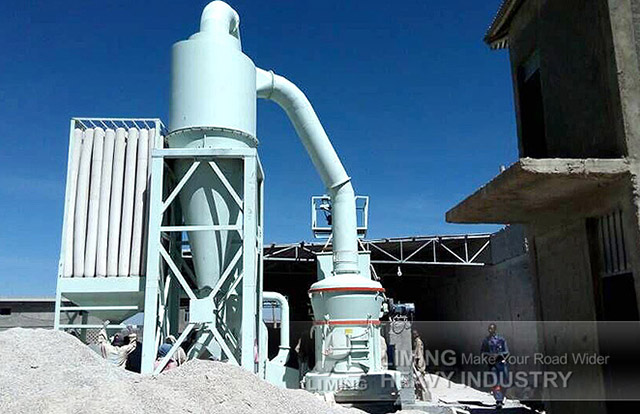

Qualified materials after crushing are evenly, quantitatively and continuously fed into the mill chamber of the main engine for grinding by the frequency conversion belt feeder. The ground materials are sent to the powder classifier by the airflow of the fan for classification. Under the action of the analyzer, the materials that do not meet the fineness requirements fall into the grinding chamber for re-grinding, and the qualified materials enter the cyclone powder collector through the pipeline with the airflow. Inside, it is separated and collected, and the finished powder is discharged through the discharge device. The separated air flow enters the fan through the return air duct at the upper end of the cyclone powder collector. The system operates under positive and negative pressure conditions, and the equipment is equipped with a pulse dust collector, which meets the national environmental protection standards.

LIMING


Advantage

1. Linkage supercharging device of rollers, stable operation and advanced productivity.

2. High efficiency, Bevel gear overall drive, less energy loss, the production capacity increased by 20% under the same power condition.

3. Patented Technology, With reliable and advanced technology of Inner automatic thin-oil lubricating system.

4. Arc air channel, less air flow loss, better material fluidity.

5. Special design of rollers and ring, replaceable curved shovel edge, higher efficiency and lower cost-in-use.

6. No resistance snail shell.

7. Adjustable output size, efficient powders production.

8. High efficiency and precision of powders collection.

9. Humanized design, easy to use.

10. Environmental protection, unique air recycling system, together with advanced dust collector make environment much cleaner.
